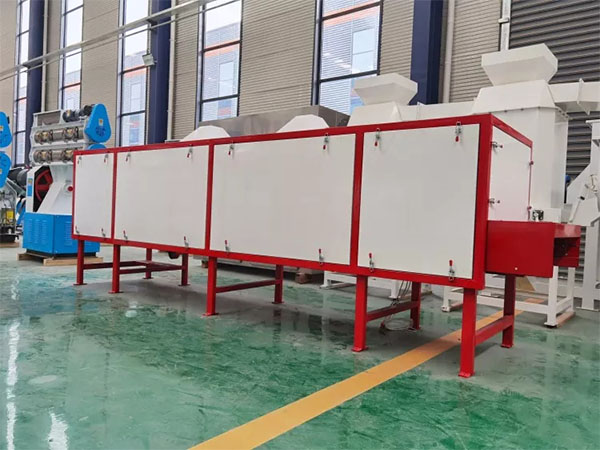

Introduction

Drying is an important process in the processing of expanded feed. The moisture of the feed pellets just extruded from the extruder is very high, reaching 22% or more.

Feed dryer machine is a specially designed machine to remove feed pellet moisture and heat generated in feed pellet production line.

It is necessary to remove more than 10% of the moisture from the drying equipment and then cool it to ensure that it meets the qualified product quality.

Advantages

Advantages of the Feed Pellet Cooler

The feed drying machine's configuration is very flexible. So you can install it simply. Besides, will not be vibrated or impacted during the drying process.

Hot air can be circularly applied with fast drying speed. And the machine has high evaporation intensively, which can save energy greatly.

The machine can produce hot air distribute uniformly because of its unique air dividing device, this can guarantee finished pellet's quality.

It has convenient drying parameters adjustment, flexible operation, and it’s widely adaptation, ideal for drying feed pellets, grains and etc.

Working Principle

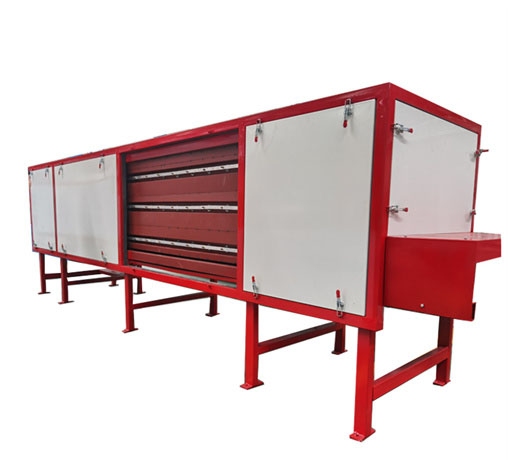

The Feed Drying Machine is consist of circulating fan, heating device, fresh-air-suction-system and exhaust-exiting system. Materials evenly spread on the mesh belt by the feeder.

The air pipe of the top is connected with fan. One part of air is circulated, some exhausted gas is discharged with a special moisture elimination blower, and other waste gas is controlled through an adjustment valve.

The transmission device drag mesh belt moving evenly, and the hot air passes through the mesh-belt covered with a special moisture from the top to the bottom or from the bottom to the top, and this will complete the heat and mass transfer process.

Parameter

Model	Capacity(kg/H)	Pressure roller(pcs)	Power(kw)	Weight(Kg)	Dimension（cm）
FZP-125	80-100	2	4	75	803052
FZP-150	90-150	2	4	80	833057
FZP-210	200-300	2	7.5	160	12004070
FZP-230	350-450	3	11	230	11804573
FZP-260	400-500	3	18.5	260	1224586
FZP-300	500-700	4	22	350	1505595
FZP-400	900-1000	4	30	680	15255112
FZP-500	1200-1500	4	45	1000	16485158

Model	Capacity	Voltage	Power(KW)	dimension(mm)
SZLH250	1-2T	380V	11/22	225814511366
SZLH320	2-4T	380V	37	230015001850
SZLH350	2-6T	380V	55	240012002200
SZLH400	3-8T	380V	90	260012502300
SZLH420	4-12T	380V	110	310012502400
SZLH508	4-18T	380V	132	310013002550
