Flat Die Chicken Feed Machine,Flat Die Poultry Feed Making Machine

Introduction

Features

Advantage

Parameter

Inquiry

Introduction

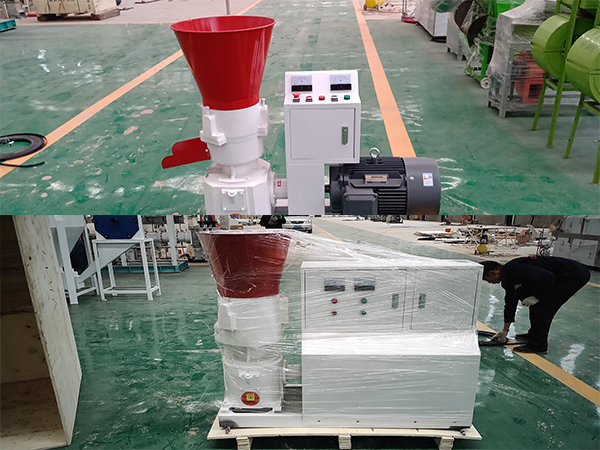

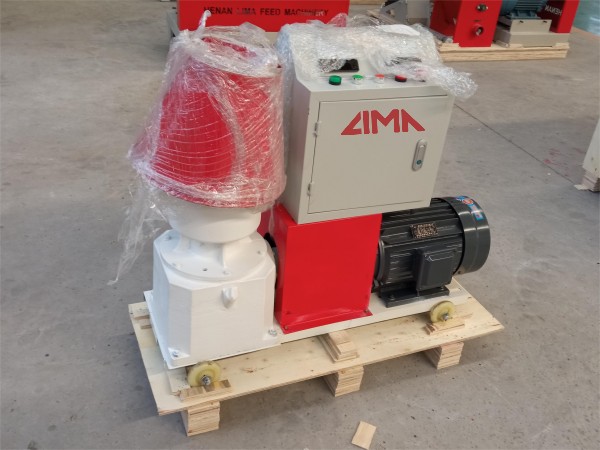

: 1.LIMA Animal Feed Pellet Production Line standard export wooden case package
2. non fumigation feature
3.once machine manufactured well, pack well, packing photoes will be sent to you as you check
4.Any capacity can be customized.
5.machine package based on clients demands

Features

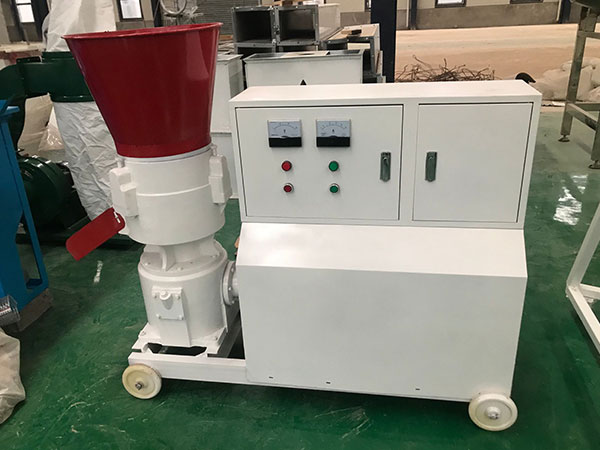

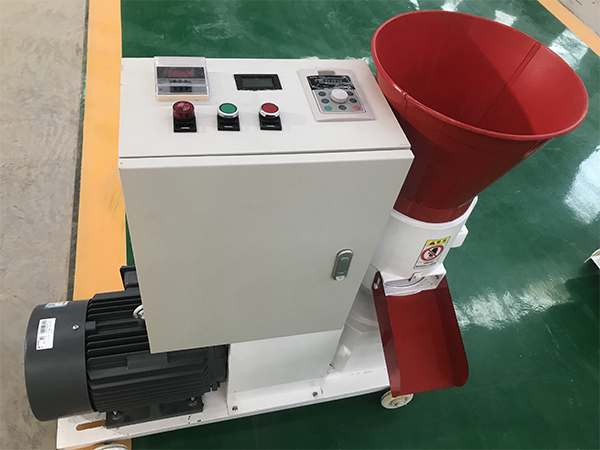

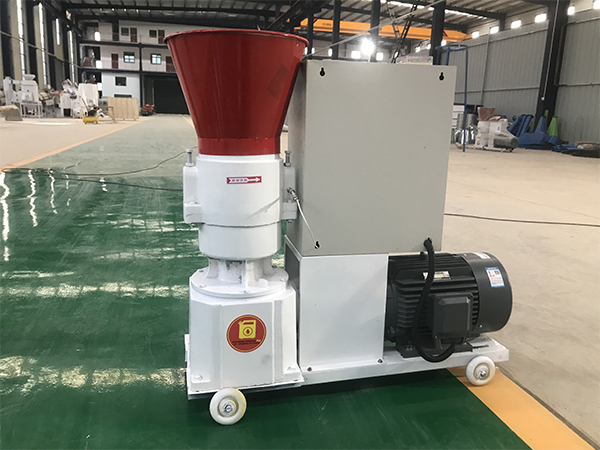

feed machine

1) Varied driving power, electricty or diesel; environmentally friendly and energy saving

2) Equipped with the clutch and accelerating-decelerating device to change its speed.

3) Made of wear-resistant material thus having a long service life. And it can solve problems in time.

4) Adopt screw-center adjusting pressure structure which makes flat die pellet mill more practical.

5) Can make different feed pellets to meet different production requirements.

6) Adjustable compression rate, the flat die pellet mill can meet different pelletizing requirements and is available to press coarse materials.

7) Can process various kinds of solid grain into small feed pellets for animals like fish, shrimps, chicken, rabbit, and pig;

8) Widely used in small aquaculture, grain feed factory, farm, poultry farm, as well as individual farmers.

Advantage

Cattle feeding machine made the feed pellet by corn, bean pulp, straw, grass and rice husk.

Used for aquiculture, poultry feed making plant, stock farm, poultry farm etc.

Flat die adopt high quality wear-resisting alloy steel, which are processed by special heat treatment, high hardness, long working life.

It is recommended replace roller and die at the same time.

We have several diameter for your choice, and the size can be customized according to your requirements.

You can choose 3mm, 4mm, 5mm, 6mm and so on according to your demands.

Parameter

SPECIFICATIONS FOR ANIMAL FEED PELLET MACHINE
Model	Wood chip production （t/h）	Feed production（t/h）	Engine(diesel/electric/gasoline)	Motor Power
LM125A	40-60 KG/H	60-100 KG/H	diesel	8HP
LM120B	40-60 KG/H	60-100 KG/H	electric	2.2KW 220V 50HZ 3KW 380V 50HZ
LM150A	50-100 KG/H	100-200 KG/H	diesel	8HP
LM150B	90-120 KG/H	150-220 KG/H	electric	4KW 380V 50HZ
LM150C	50-100 KG/H	100-200 KG/H	gasoline	13HP
LM200A	110-180 KG/H	220-350 KG/H	diesel	15HP
LM230A	150-200 KG/H	300-400 KG/H	diesel	22HP
LM230B	150-200 KG/H	300-400 KG/H	electric	380V 50HZ 11KW
LM260B	200-300 KG/H	400-600 KG/H	electric	15KW 380V 50HZ
LM300B	300-400 KG/H	600—800 KG/H	electric	22KW 380V 50HZ
